LJ-Coiling Taping Embroidery Series

LJ Rhinestone hot fixed (mixed) embroidery machine uses turn plate and nozzles to fix the rhinestones on fabric by ultrasonic hot melt. It automatically changes the rhinestones with size of SS6-SS30 2mm-6mm and colors from 1-6, with maximum speed of 200-250 pieces rhinestones per minute. Compared with way of traditional manual rhinestone hot fixed, it has advantages of excellent precision, better adhesive firmness and higher speed. It can be mixed with flat embroidery heads which equipped with sequin and taping devices, to make gorgeous combination of embroidery and rhinestones. It's mainly used for underwear, children's wear, embroidery designs, leather, hand bags, hair decorations, shoes and caps etc.

Product Details Inquiry Us

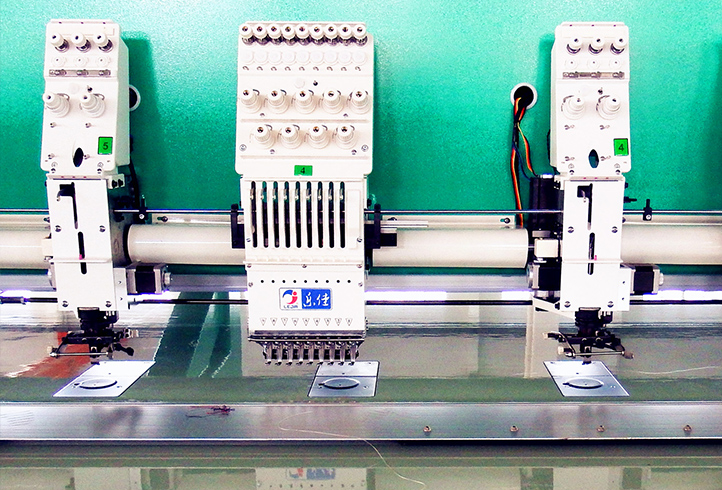

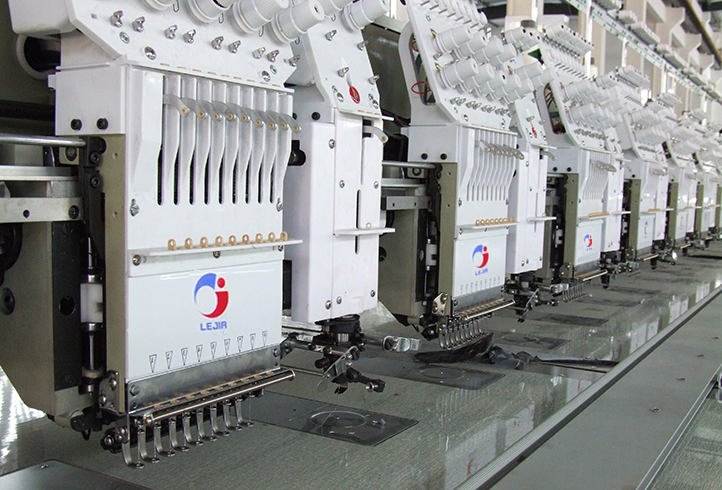

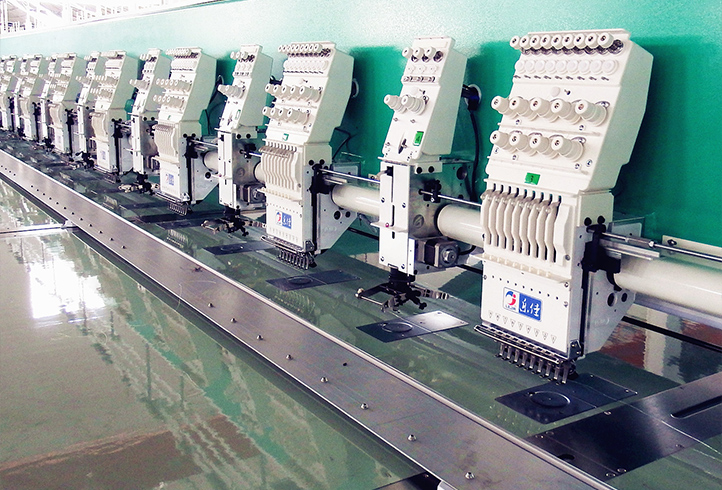

Product Shows

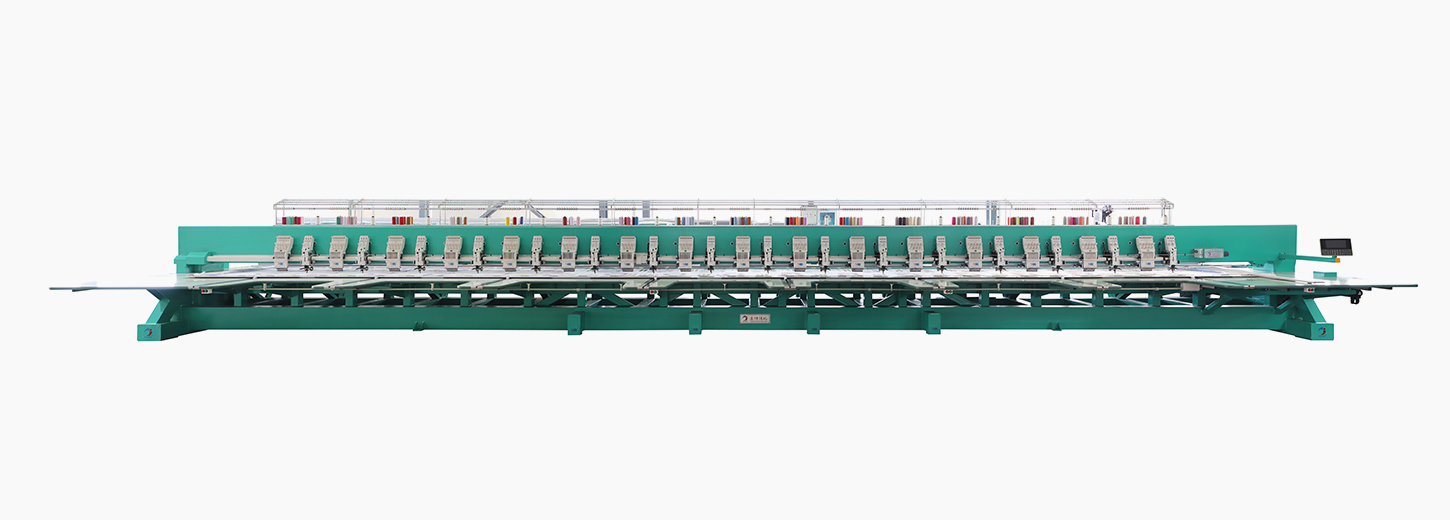

LJ-Coiling Taping Embroidery Machine Series

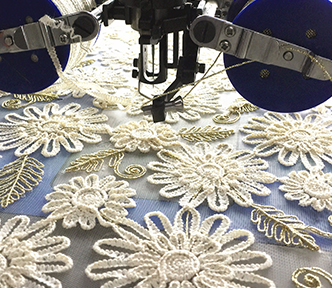

LJ-Coiling Taping Embroidery Machine Series has different ways of work such as coiling, zigzag and frill embroidery

Embroidery Fabrics

Product Details

LJ-Coiling Taping Embroidery Machine Series Specification:

Needle Number	3、4、6、9、12、15 needles for option	Head Number	1-228 heads for option
Head Distance	Customized	Embroidery Area	Customized
Tension Base	Intelligent thread break detect	Main Shaft Motor	2.3KW Servo Motor×1pc
Upper Thread Holding Device	Automatic keep locked thread device(For Option)	Embroidery Speed: 1200 (850 and 1200 rpm optional)	250-1200RPM
Auto Lubrication	For Option	X/Y Motor	1.5KW Servo Motor ×2pcs
Control System	Dahao Computer	X/Y Drive	1.5KW Servo Motor ×2pcs
Memory	200,0000 stitches、200pcs design	Input Voltage	Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/
Input Mode	U DISK	Power comsumption	1.5KW-5KW
Design Format	Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system	Stitch Length	0.1-12.7mm
Head Structure	Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)	Head Lock System	Solenoid jump or Motor jump
Machine Color	Green/Gray	Embroidery trimming	Step into the dynamic automatically cut the line design (For Option)
Color Change	Screw rod automatic color(For Option)	Combination Embroidery Function	Customized
Sequin Device	Single sequin/Double sequin/Twin sequin/4sequins	Sequin Specification	2mm/3mm/4mm/5mm/7mm/9mm
Easy Cording Device	Customized	Beads device	Customized
Coiling head	For Option	M axis	Stepping fouces color changing
